2GHz~6GHz 500W PA Module

a.Performance Indicators:

a)Frequency Range: 2GHz~6GHz；

b)Output Power: ≥500W；

c)Gain: ≥45dB；

d)Input Power: ≥10dBm；

e)Harmonic Wave Rejection: ≤-10dBc；

f)Spurious Rejection: ≤-60dBc；

g)Input Standing Wave: ≤2；

h)Input Voltage: +220V（Main supply）；

i)Operating Duty Ratio: ≤15%

j)Overall Power Consumption: ≤350W；

k)PTT Control: PA operating and closing state controlled by PTT signal;

l)Functions: Be with functions of over-temperature protection, over-current protection, short-circuit protection and standing wave protection. PA should be turned off if load standing wave ratio is greater than2.5；

m)Environmental Adaptation:
Operating Temperature: -40℃~+55℃（PA protection is allowed when the temperature rises to 90℃）；
Storage Temperature: -50℃~+55℃；

n)Weight: ≤10Kg；

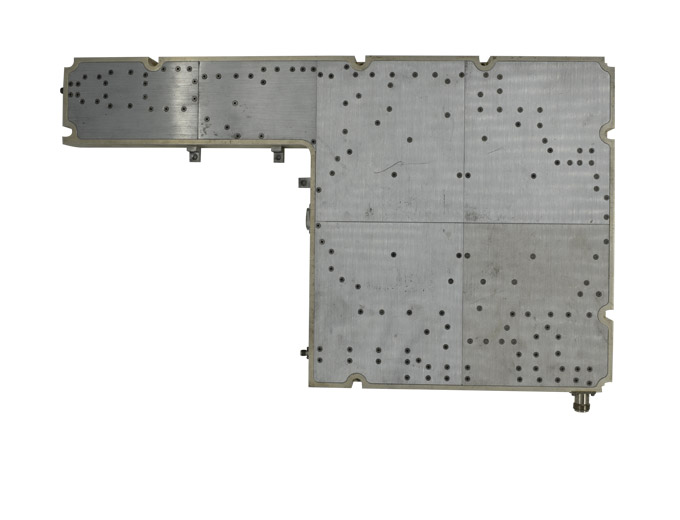

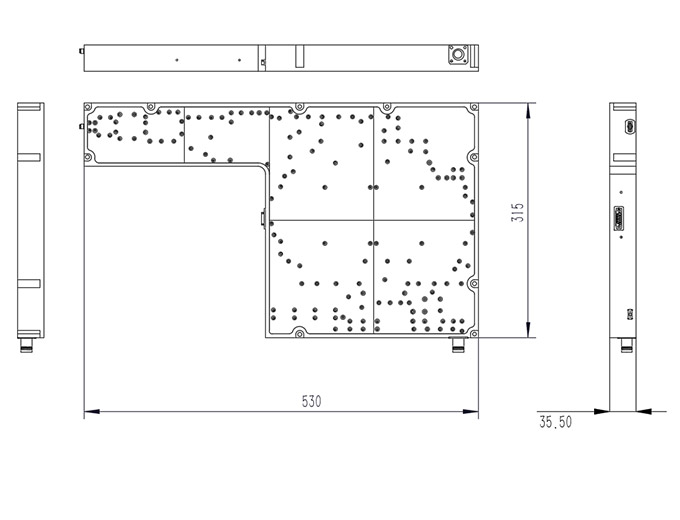

o)Overall Dimensions: 530mm*315mm*35.5mm；

p)RF Input Interface: SMA(F)；

q)RF Output Interface: N(F)；

r)Heat-dissipating Mode: Air cooling (the wind direction is the same as the signal output).

b.Structure
