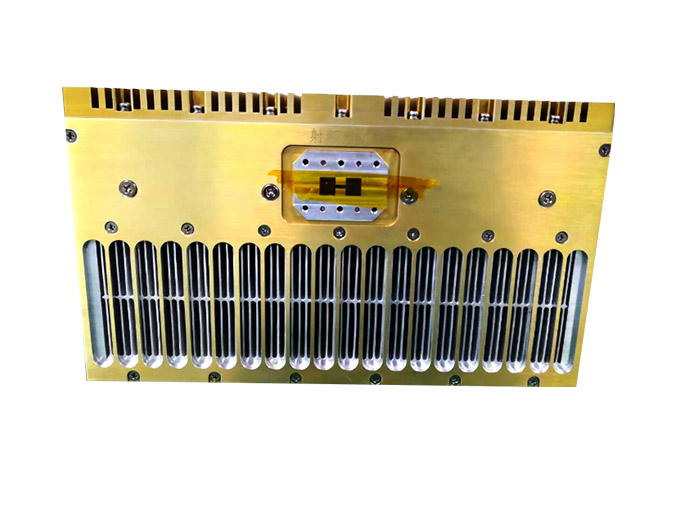

Broadband PA

1. Indicator Requirements:

1）Operating Frequency: 6～18GHz;

2）Output Power: ≥100W continuous wave;

3）Power Flatness: ≤±2dB；

4）Gain: ≥30dB；

5）Spurious Rejection: ≥55dBc；

6）Harmonic Wave Rejection: ≤-10dBc；

7）Input Standing Wave Ratio: ≤2:1；

8）Operating Voltage: 28V；

9）Operating Current: ≤35A；

10）Be with function of over-temperature protection, output over-standing wave protection;

11）Interface Definition: RF Input: SMA-K；
RF Output: Ridge waveguide port 36JS5000；
Power Supply Interface: Rectangular socket J30J11P04KP00S00000；

2. Overall Dimensions:

246mm×246mm×140mm。
