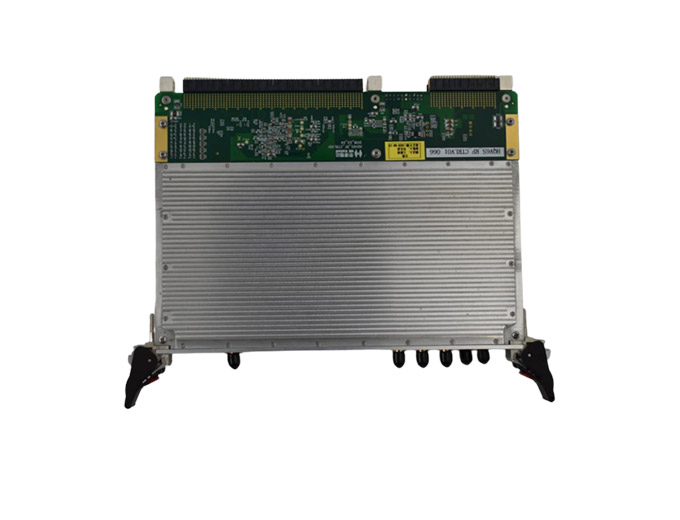

Broadband TR Module

a. Function Requirements

1)The received signal is processed by high-power TR switch, amplitude limiting, filtering amplification and mixed for IF output. It can be configured with different receiving bandwidths;

2)Supportive transmitting and receiving of common communication signals: SSB, AM, FM, ASK, PSK, FSK, 16QAM, OFDM and so on.

b. Technical Indicators:

1. 1.5M～30MHz RF Module

1) Operating Frequency: 1.5M～30MHz；

2) Frequency Stepping: 100Hz；

3) IF Frequency: 21.4MHz；

4) Reference Clock: Supporting 200MHz，7±3dBm；

5) Receiving Band Width: 3kHz, 25kHz adjustable；

6) Phase Noise: ≤-95dBc/Hz@1kHz；

7) Noise Coefficient: ≤6dB；

8) Spurious Rejection: ≥68dBc；

9) Harmonic Wave Rejection: ≥57dBc；

10)IF Rejection: ≥82dB；

11)Image Frequency Rejection: ≥82dB；

12)Adjacent Channel Rejection: ≥68dB；

13)Receiving Gain: ≥70dB±3dB, stepping 1dB；

14)Output Power of Transmitting Channel: Radiation type 0.1W, 1W, 5W adjustable；

15)Output can be turned off: Isolation ≥80dB；

16)Frequency Hopping Time: ≤50us；

17)Pulse PA Setup Time: ≤50us；

18)RF Input Tolerable Power: ≥10W。

2. 30MHz～512MHz RF Module

1) Operating Frequency: 30MHz～512MHz；

2) Frequency Stepping: 100Hz；

3) IF Frequency: 70MHz；

4) Reference Clock: Supporting 200MHz，7±3dBm；

5) Frequency Stability: 1ppm；

6) Receiving Band Width (-3dB): 25kHz, 200kHz, 500kHz, 1.6MHz, and 8MHz configurable；

7) Receiving Input Power Range: -108dBm～-10dBm；

8) Transmitted Input Power: -5dBm～-2dBm；

9) Transmitted Output Power Flatness: ≤±1.5dB(full spectrum band）；

10)Phase Noise: ≤-95dBc/Hz@1kHz；

11)Receiver Sensitivity: ≤-106dBm(25kHz)，≤-99dBm(200kHz)，≤-96dBm(500kHz)，≤-90dBm(1.6MHz)，≤-84dBm(8MHz)；

12)Spurious Rejection: ≥67dBc；

13)Harmonic Wave Rejection: ≥55dBc；

14)IF Rejection: ≥81dB；

15)Image Frequency Rejection: ≥81dB；

16)Adjacent Channel Rejection: ≥67dB；

17)Receiving Gain: ≥70dB±3dB，Adjustable range not less than 60dB，stepping 1dB；

18)Output Power of Transmitting Channel: Radiation type 0.1W, 1W, 5W adjustable, Injection type 1mW；

19)Switching Time for Frequency Hopping: ≤50us；

20)Pulse PA Setup Time: ≤50us；

21)Transmitting/Receiving Switching Time: ≤50us；

22)RF Input Tolerable Power: ≥5W。

3. 380M～2GHz RF Module

1) Operating Frequency: 380MHz～2GHz；

2) Frequency Stepping: 100Hz；

3) IF Frequency: 70MHz；

4) Reference Clock: Supporting 200MHz，7dBm±3dBm；

5) Receiving Band Width (-3dB): 1.2MHz、5MHz、20MHz、50MHz；

6) Receiving Input Power Rage: -105dBm～-10dBm；

7) Transmitting Input Power: -5dBm～-2dBm；

8) Phase Noise: ≤-95dBc/Hz@1kHz；

9) Receiver Sensitivity: ≤-92dBm(1.2MHz)，≤-86dBm(5MHz)，≤-80dBm(20MHz)；

10)Spurious Rejection: ≥67dBc；

11)Harmonic Wave Rejection: ≥55dBc；

12)IF Rejection: ≥81dB；

13)Image Frequency Rejection: ≥81dB；

14)Adjacent Channel Rejection: ≥67dB；

15)Receiving Channel Gain: ≥70dB±3dB, adjustable range not less than 60dB, stepping 1dB；

16)Output Power of Transmitting Channel: Radiation type 0.1W, 1W, 5W adjustable；

17)Switching Time for Frequency Hopping: ≤50us；

18)Pulse PA Setup Time: ≤50us；

19)Transmitting/Receiving Switching Time: ≤50us；

20)RF Input Tolerable Power: ≥5W。

c. Structure and Power Consumption

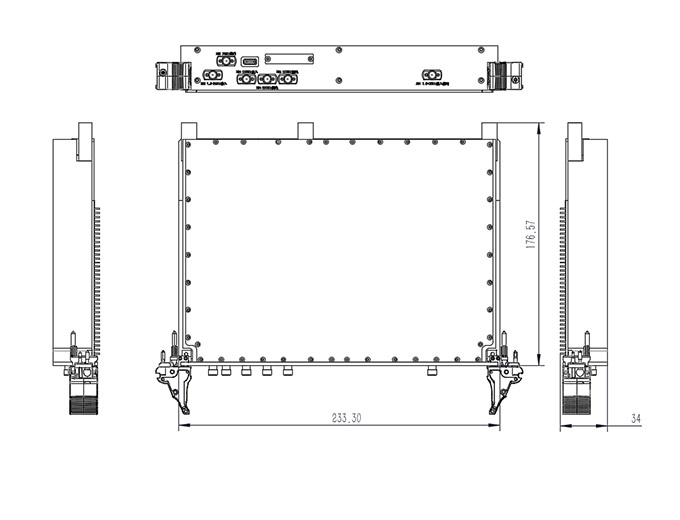

1) The structure is standard VPX 6U module, with natural heat dissipation by air cooling. The maximum thickness is not more than 30mm (including heat dissipation teeth);

2) Single Module Power Consumption: ≤50W。
