Filter Limiting Module

a. Indicator Requirements

1)Operating Frequency: 960MHz~1010MHz&1050MHz~1070MHz&1110MHz~1224MHz；

2)In-band Insertion Loss: ≤1.2dB；

3)Standing Wave at Operating Band Port: ≤1.5；

Inquiry Now

Specification of SLES

a. Indicator Requirements

1)Operating Frequency: 960MHz~1010MHz&1050MHz~1070MHz&1110MHz~1224MHz；

2)In-band Insertion Loss: ≤1.2dB；

3)Standing Wave at Operating Band Port: ≤1.5；

4)Wave Limiting Rejection Requirements: ≥60dB@1030MHz，≥60dB@1090MHz；

5)Out-of-band Rejection:
≥70dB@10MHz~800MHz
≥60dB@1255MHz±4MHz
≥50dB@1280MHz~3000MHz；

6)Power Rating: ≥1500W (Peak), ≥225W (Average)；

7)Interface Type: SMA-K；

8)Operating Temperature: -55℃~+70℃。

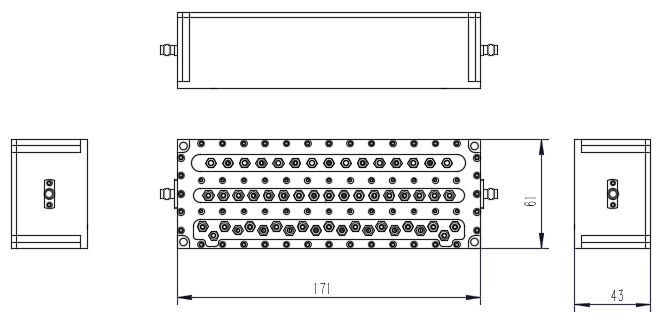

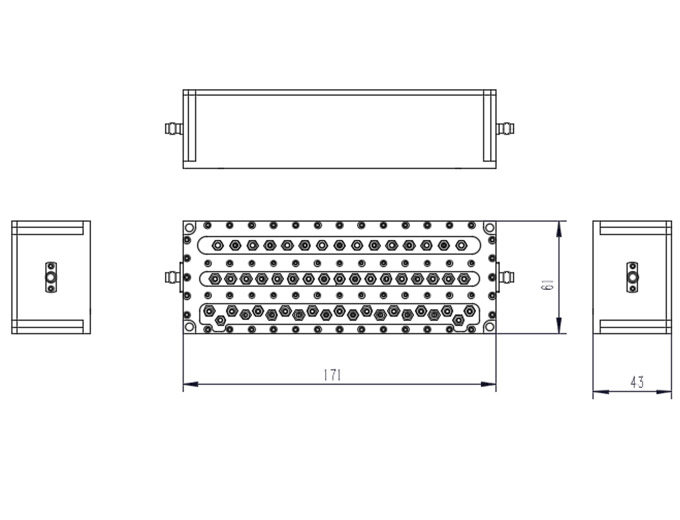

b. Overall Dimensions
