Filter

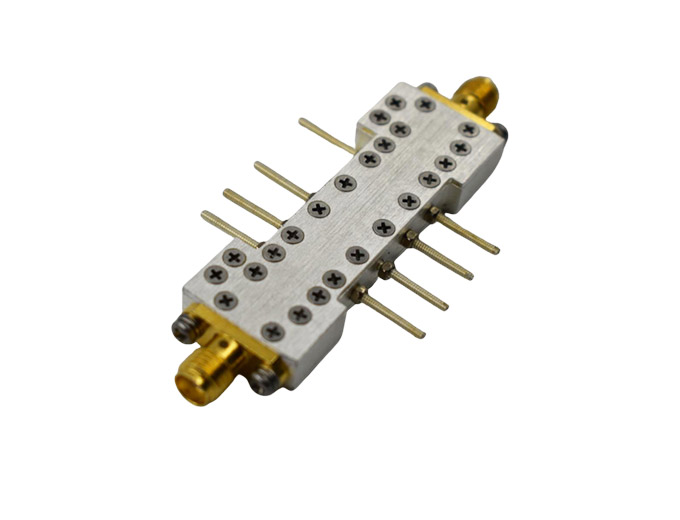

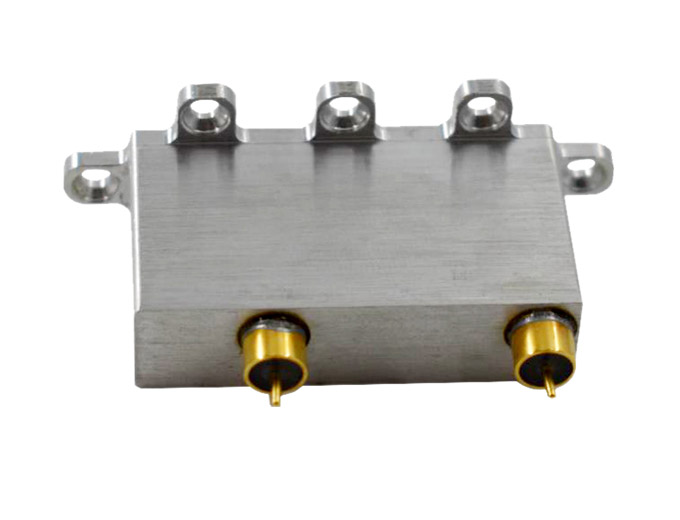

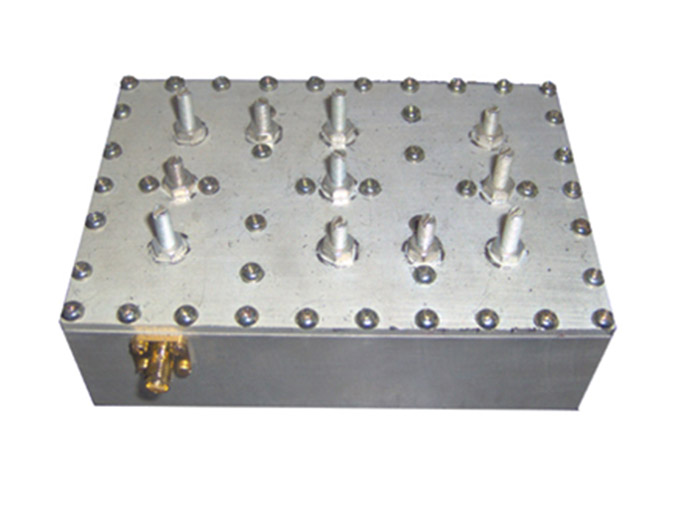

Our company owns a variety of filters covering high-pass, band-pass and low-pass filters, with realization forms including LC filter, spiral filter, cavity filter, waveguide filter and so on.

Inquiry Now

Specification of SLES

Electrical Performance Indicators of Typical Products

No.	Frequency Range （GHz）	Realization Form	Insertion Loss (dB)	Rejection Capability (dB)	Standing Wave	Peak Power (W)	Connection Type
1	0.0595~0.0605	BPF	3.5	≥65@5MHz~35MHz ≥65@85MHz~500MHz	1.2	5	SMA/SMT
2	0.01~0.12	LPF	0.8	≥45dB@150MHz~2GHz	1.2	5	SMA/SMT
3	0.065~0.125	BPF	1.5	≥55dB@160MHz ≥80dB@30MHz	1.3	5	SMA/SMT
4	0.55~0.58	BPF	1.5	≥60dB@500MHz ≥50dB@630MHz	1.3	50	SMA
5	1.025~1.035	BPF	1.5	≥20dB@F0±10MHz ≥35dB@F0±15MHz ≥60dB@F0±30MHz	1.3	500（Pulse）	SMA
6	1.085~1.095	BPF	1.5	≥20dB@F0±10MHz ≥35dB@F0±15MHz ≥60dB@F0±30MHz	1.3	500（Pulse）	SMA
7	13.75~14.25	BPF	0.8	≥40dB@DC~12.7GHz ≥40dB@15.3GHz~25 GHz	1.4	50	SMA
8	12.27~12.77	BPF	1	≥40dB@DC~11.8GHz ≥40dB@13.25GHz~22 GHz	1.4	50	SMA
9	DC~2	LPF	1	≥50dB@2.3~6GHz	1.3	10	SMA
