Frequency Source

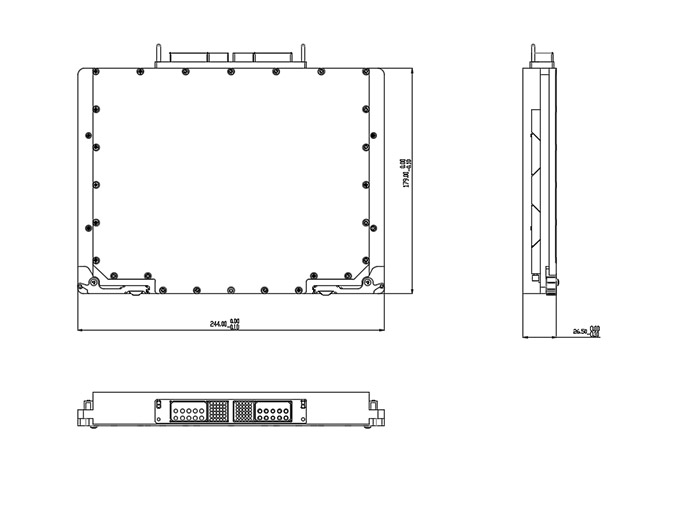

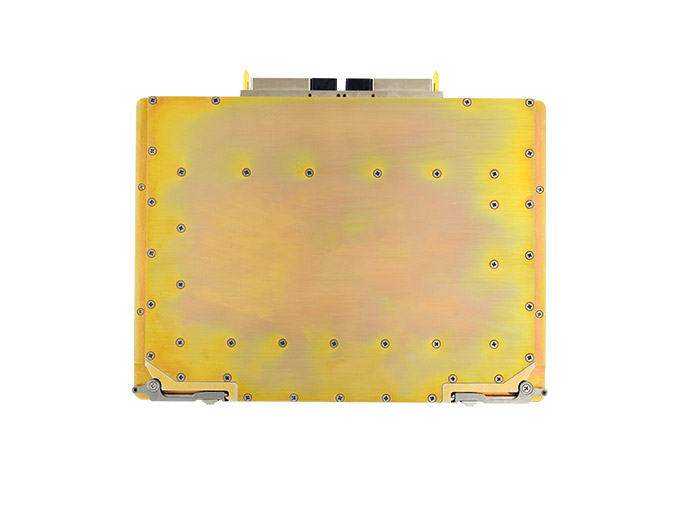

Frequency Source Module

a.Electrical Performance Requirements
1)Input Characteristics:
a)Input Reference Frequency: 10MHz;
b)Frequency Accuracy: ≤±0.5ppm;
c)Input Reference Amplitude: 6dBm±2dBm;
d)Input Reference Phase Noise: ≤－150dBc/Hz@10KHz.

2)Characteristic of Output Chennel 2
Output Synchronization Reference Clock 1:
a)Output Frequency: 10MHz;
b)Output Amplitude: 7dBm±1dBm;
c)Phase Noise: ≤－120dBc/Hz@10KHz;
d)Spurious Rejection: ≥65dBc;
e)Harmonic Wave Rejection: ≥40dBc。

Reference Clock 2 of Output Channel 12:
a)Output Frequency: 640MHz;
b)Output Amplitude: 11dBm±1dBm;
c)Phase Noise: ≤－130dBc/Hz@10KHz;
d)Spurious Rejection: ≥65dBc;
e)Harmonic Wave Rejection: ≥40dBc;
f)Amplitude Consistency: ≤±0.5dB;
g)Phase Consistency: ≤±3°.

Reference Clock 3 of Output Channel 1:
a)Output Frequency: 4000MHz;
b)Output Amplitude: 11dBm±1dBm;
c)Phase Noise: ≤－115dBc/Hz@10KHz;
d)Spurious Rejection: ≥65dBc；
e)Harmonic Wave Rejection: ≥40dBc.

3)Power and Power Consumption:
Voltage: +28V; Power Consumption: ≤15W.

b.Weight:
Module Weight: ≤3kg.
