Ka-band Down-converter

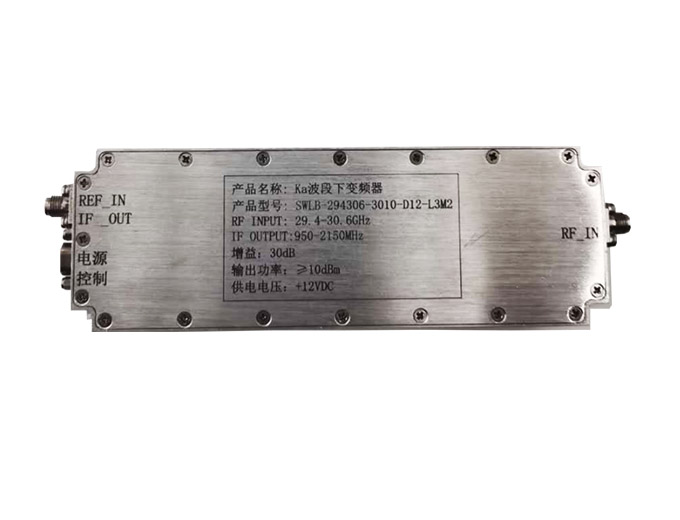

It has the function of down-conversion from Ka band to L/S band. The RF input port also has the function of feeding, reference input, and clock input. The module starts to work automatically after power-on

Inquiry Now

Specification of SLES

Ka-band Down-conversion Electrical Characteristics Indicators:

1）Input Power: 29400MHz～30600MHz；

2）Output Power: 950MHz～2150MHz；

3）LO: 28450MHz；

4）Noise Coefficient: ≤10dB；

5）P1dB：≥+10dBm；

6）Gain: 30dB±1.5dB；

7）In-band Flatness: Random: 50MHz±0.75dB；
Random: 400MHz±1.5dB；

8）Spurious: ≤-50dBc；

9）Reference Frequency: 100MHz；

10）Reference Input Level: 0dBm±2dB；

11）Output Phase Noise: ≤-63dBc/Hz@100Hz；
≤-73dBc/Hz@1KHz；

12）Power Supply: DC +12V；

13）Interface: L/S-band RF Connector: SMA-K，
Ka-band RF Connector: 2.92K；

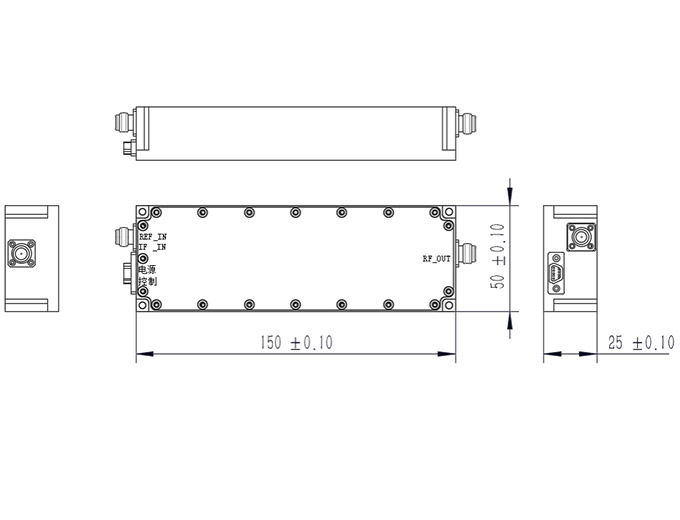

14）Overall Dimensions: 150mm×100mm，H＜32mm。
