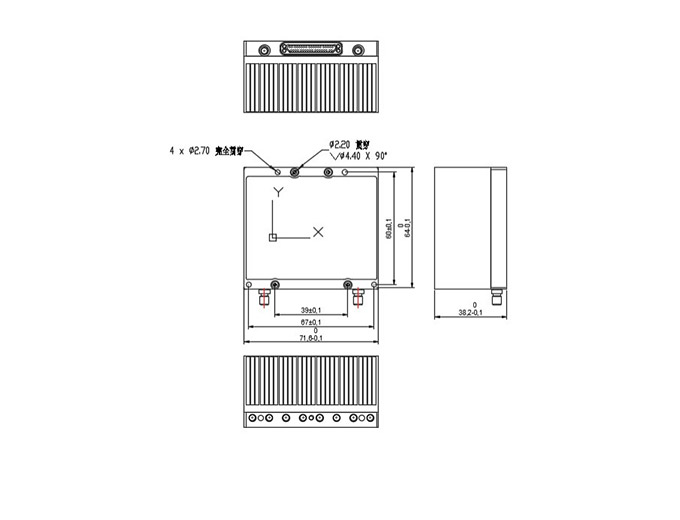

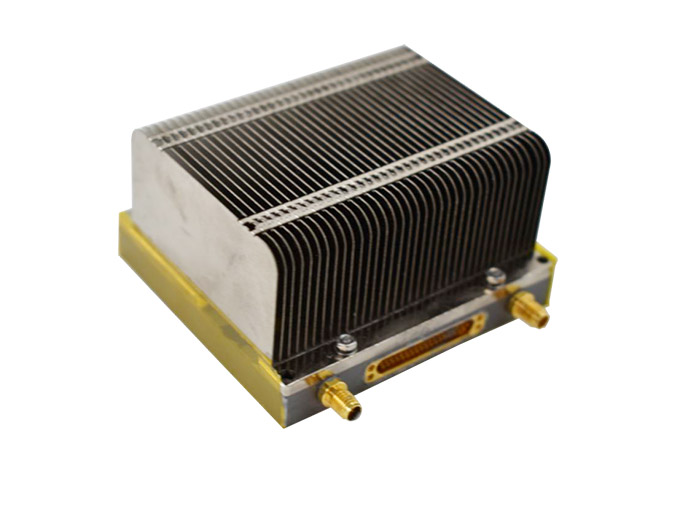

Ku-band Eight-channel TR Module

1）Operating Frequency: Ku band;

2）Band Width: ≮2GHz;

3）Pulse Width: 1us~250us;

4）Repeated Frequency: 500Hz~20KHz;

5）Max. Duty Ratio: 16%;

6）TR Switching Time: 0.2us;

7）Peak Power of Transmitting Output: ≥25W;

8）Transmitted Excitation Signal: 4dBm±2dBm;

9）Fluctuation of Transmitted Output Power: ≤1dB;

10）Amplitude Inconsistency of Output Power: ≤±0.5dB;

11）Rising/Sinking Edge: ≤0.1us;

12）Top Drop: ≤1dB (max. pulse width, max. duty ratio, single channel test);

13）Transmitted Spurious Rejection: ≥70dB;

14）Noise Coefficient of Receiving Channel: ≤3.5dB;

15）Receiving Channel Gain: ≥20dB ( single-channel test conducted @ 0 state attenuation);

16）Single Channel P-1dB: ≥-25dB;

17）Receiving Spurious: ≥70dB；

18）Standing Wave of Receiving Port: ≤2;

19）Burn Resistance Power: ≥35W(Under max. duty ratio and pulse width);

20）Phase Consistence of TR Channels: ≤±15°.
