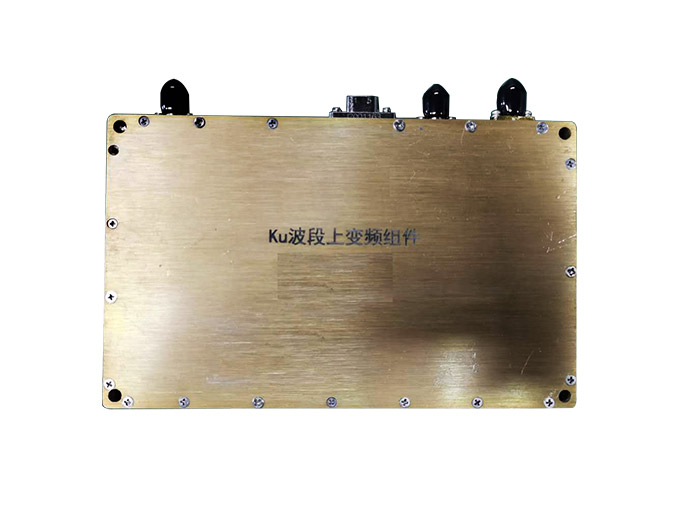

Ku-band up-converter is used to convert 12ooMHz intermediate frequency signals to 10GHz~14.5GHz RF signals, and then output the same after wave filtering and power amplifying. It is of the functions such as frequency configuration, numerical control attenuation, amplitude control of output signal and locked indication reporting. It is mainly composed of up-conversion channel, LO frequency source and power control board.
1）IF Input Frequency: 1200MHz；
2）Max. Input Signal Bandwidth: ±250MHz;
3）IF Input Power: 0～5dBm；
4）RF Output Frequency: 10GHz～14.5GHz；
5）RF Output Power: ≥30dBm；
6）Output Power Flatness: ±1dB；
7）Spurious Rejection of Non-harmonic Wave: ≥55dBc；
8）Numerical Control Attenuation: Max. Attenuation ≥45dB @ 0.5dB stepping；
9）Frequency Hopping Stepping: 10MHz；
10）Frequency Hopping Time: ≤100us；
11）Output Phase Noise: ≤-80dBc/Hz@1KHz；
12）Power Supply: +12V；
13）Overall Power Consumption: ≤24W；
14）Weight: ≤500g；

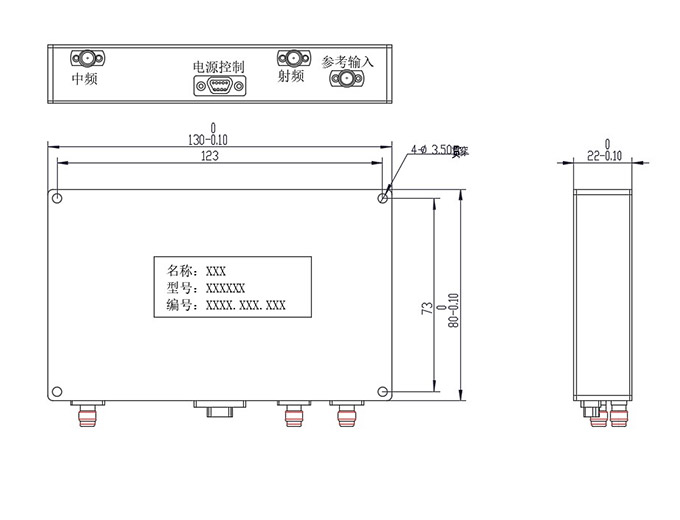

15）Overall Dimensions: 130mm×80mm×22mm；
16）RF Interface: SMA-K；
17）Power and Control Interface: J30J-9ZKP
