MET Radar Modules

•

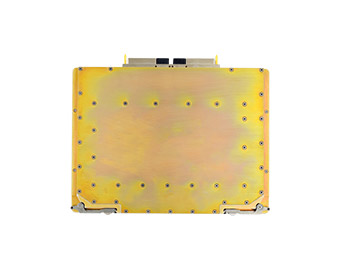

  Frequency Source

  Electrical Performance Requirements 1)Input Characteristics:a)Input Reference Frequency: 10MHz;b)Frequency Accuracy: ≤±0.5ppm;c)Input Reference Amplitude: 6dBm±2dBm;d)Input Reference Phase Noise: ≤－150dBc/Hz@10KHz.

•

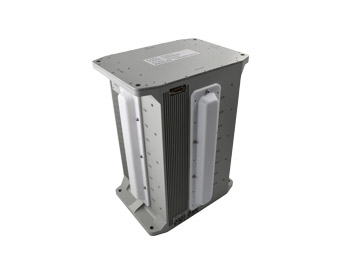

  Front End of Phased Array Antenna

  Front end of C-band phased array antenna. Operating Frequency Range: F1GHz～F2GHz;

•

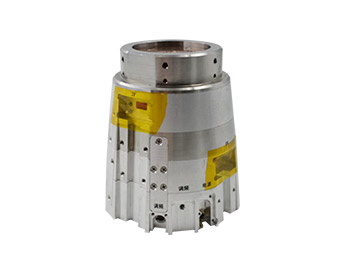

  MMW TR Module

  1)Transmitting Frequency: F0±20MHz;2)Transmitting Power, Channel Balance: Pt=27dBm-30dBm，Pt1-Pt2≤1;3)Power Stability @ F1 Port: Pt1RT-Pt1H&L T≤1dBm;4)Power Stability @ F2 Port: Pt2RT-Pt2H&L T≤1dBm;

•

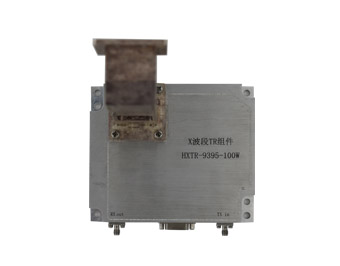

  X-band TR Module

  T/R module is an important parts connecting radar channel to antenna, which is mainly used to complete TR transmitting/receiving, filtering, X-band power amplifying, as well as amplitude limiting and noise amplifying at receiver terminal.

•

  L-band TR Module

  L-band miniaturized transceiver module has the functions of zero IF frequency modulation and demodulation, RF transmitting/receiving, filtering, amplification, attenuation, amplitude limiting, wave detection and so on.

•

  Ku-band Frequency Synthesizer Receiver

  a. Technical Indicators of Frequency Synthesizer:1）Frequency Range: 17000±500MHz；2）Frequency Stepping: 20MHz（51 frequency point）；3）Excitation Signal Channels: 1；4）Output Power of Excitation Signals: 23±1dBm；

•

  X-band Frequency Synthesizer Receiver

  a.Technical Indicators of Transmitting Excitation/Signal Calibration 1）Frequency Range: 9.0GHz～10.0GHz；2）Frequency Stepping: 40MHz（26 frequency points）；3）Output Channels of Transmitting Excitation Signal: 2；4）Output Channels of Calibrating Signal: 2；

•

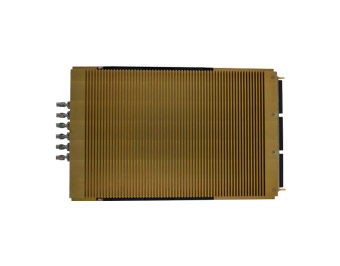

  L-band Six-channel Receiver

  The six-channel receiver adopts one-down conversion technology. The RF signal is FL~FHMHz, the IF signal is 270MHz, and the instantaneous signal bandwidth is 8MHz.
