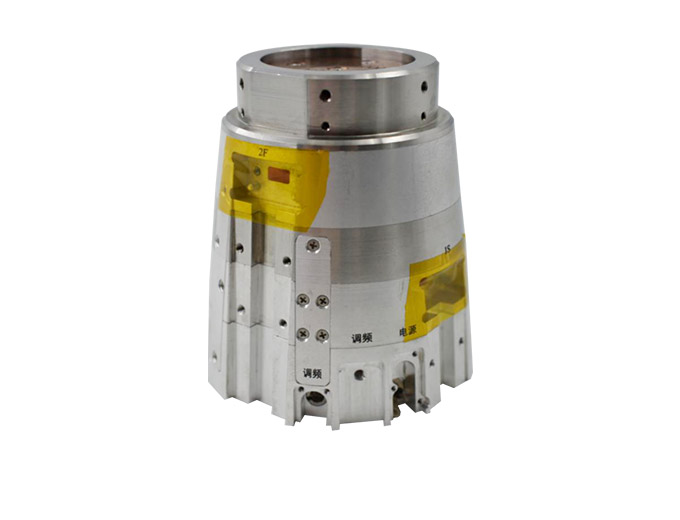

MMW TR Module

1)Transmitting Frequency: F0±20MHz;

2)Transmitting Power, Channel Balance: Pt=27dBm-30dBm，Pt1-Pt2≤1;

3)Power Stability @ F1 Port: Pt1RT-Pt1H&L T≤1dBm;

4)Power Stability @ F2 Port: Pt2RT-Pt2H&L T≤1dBm;

5)Phase Noise: ＜-70dBc@5KHz;

6)Frequency Instability: ＜350KHz;

7)Rejection Ratio of Transmitted Spurious: ≥60dBc;

8)Modulation Frequency Offset: 400MHz±5MHz;

9)Modulation Linearity: MHz, percentage, linearity=0.5%;

10)Receiving Gain, In-band Flatness: G=20±3dB,GMAX-GMIN≤1.5dB;

11)Gain Balance: G1-G2≤1dB(when the IF is 80MHz);

12)Gain Stability @ S1 Channel: G1RT-G2H&L T≤1dB (when IF is 80MHz);

13)Gain Stability @ S2 Channel: G2RT-G2H&L T≤1dB (when IF is 80MHz);

14)Receiving Channel: P-1≥-25dBm;

15)Max. Tolerable Power of Receiving Channel: ≥15dBm;

16)Noise Coefficient of Receiving Channel: ≤9dB;

17)IF Spurious: ≤-70dB;

18)Current Consumption: ≤1.5A;

19)Instantaneous Current: ≤13A;

20)Stabilization Time of IF Output: ≤50ms;

21)TR Relative Delay (Equivalent test): 14.4MHz±0.8MHz.
