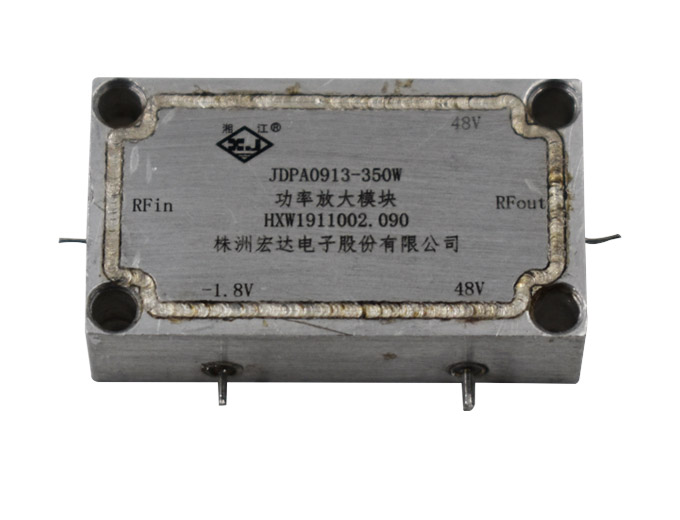

Matching PA within 350W at L-band

1）Operating Frequency: 960MHz～1215MHz；

2）Input Power: 25dBm±1dBm；

3）Input Non-Maximum Failure Power: +35dBm（max）；

4）Power Gain: 31dB±1dB；

5）Peak Power Output: ≥55.4dBm (350W) (Compression Depth: ≤3dB);

6）Duty Ratio: 10%, Max. Instantaneous Duty Ratio: ≤64% (Resistible longest pulse: 128us) ;

7）Power Flatness: ≤1dB（Identical input）；

8）Efficiency: ≥60%；

9）Power Consistency: ≤1.2dB（Identical condition）；

10）Small-signal Power Consistency: ≤±1dB；

11）Standing Wave at Input Port: ≤1.8；

12）Standing Wave at Output Port: ≤1.8；

13）Input/Output Impedance: 50Ω；

14）Resistible Standing Wave Ratio: 10:1；

15）Max. Operating Junction Temperature: 220℃, Thermal Resistance:＜3℃/W；

16）Transmitting Spectrum: In compliance with Spectrum Requirements of Annex 10 of the Convention on International Civil Aviation.

17）Operating Temperature: -55℃～+85℃；

18）Operating Voltage: Vcc1=+50V±3V，Vcc2=-1.8V～-2.2V。
