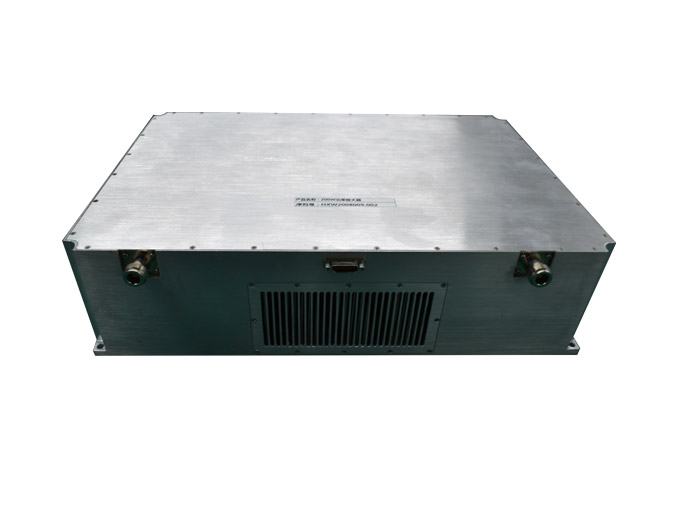

P-band PA Module

1. Indicator Requirements:

1) Operating Bandwidth: 170～600MHz；

2) PA Operating Mode: AB type；

3) Applicable Communication Signal Type: Digital modulation（FSK、QPSK）；

4) Input Signal Level: +5dBm；

5) RF Output Interface: N-50K；

6) Input/Output Impedance: 50Ω；

7) Input/Output Standing Wave: ≤1.5:1；

8) Output Power: 1～200W, stepping 0.5dB，(test within 50dBm)，Controllable attenuation width ≥24dB；

9) Output Power Flatness: ≤±1.5dB；

10)Output Harmonic Wave Rejection: ≥30dBc；

11)Output Spurious Rejection: ≥70dBc（within rated power）；

12)Turn-off Rejection: ≥60dBc；

13)Stabilization Time of Output Power: ≤50us；

14)Three-order Intercept: ≤-20dBc（@53dBm output）；≤-25dBc（@50dBm output）；

15)Power Supply: AC220V±10%, aviation socket;

16)Power Consumption: ≤750W(@ output power 200W)，Static Power Consumption: ≤100W( when the input signal is off).

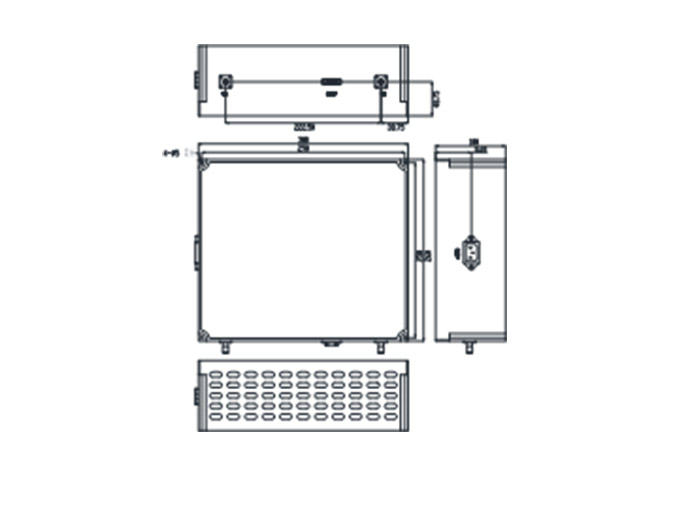

2. Overall Dimensions:

1) 19 inches standard chassis with a height of 4U, depth of 480mm；

2)Weight and Color: ≤15KG, Gray.
