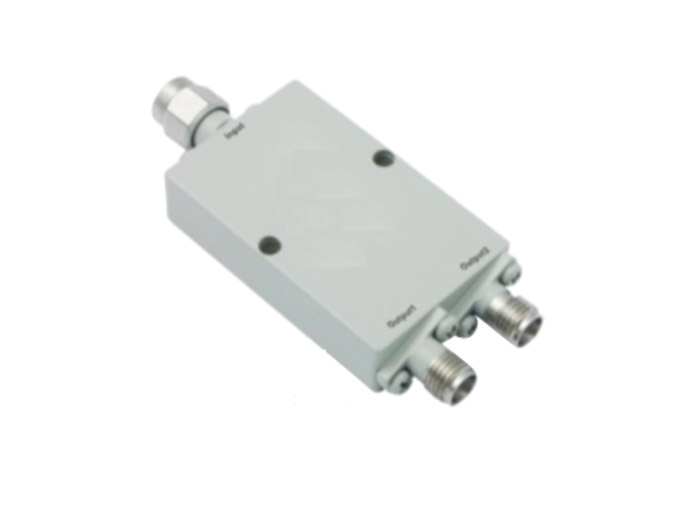

Power Divider

No.

Frequency Range (GHz)

Division

Channels

Isolation（dB）

Phase Unbalance（°）

Amplitude Unbalance

Compensation（dB）

Input Standing Wave

Output Standing

Wave

Insertion

Loss

（dB）

Connection

Type

1

0.03~3

2

10

±2

±0.3

2.2

2.2

2.5

SMA

2

0.1~1

2

18

±2

±0.3

1.4

1.3

0.4

SMA

3

0.2~0.25

4

20

±2

±0.3

1.3

1.4

0.6

N

4

0.225~0.4

6

20

±2

±0.4

1.3

1.5

0.6

N

5

0.8~2.5

4

20

±4

±0.3

1.25

1.15

0.4

SMA

6

0.8~2.5

4

6

±4

±0.3

1.25

1.15

0.4

N

7

1~2

2

22

±2

±0.3

1.15

1.1

0.3

SMA

8

1~4

2

20

±3

±0.3

1.3

1.2

0.6

SMA

9

1~8

2

20

±5

±0.3

1.3

1.2

0.8

SMA

10

2~8

8

18

±5

±0.5

1.4

1.3

1.0

SMA

11

4~18

8

18

±5

±0.5

1.6

1.4

1.2

SMA

12

0.5~18

8

16

±6

±0.8

2.15

1.5

4.0

SMA

13

2~18

2

15

±5

±0.4

1.6

1.5

1.8

SMA

14

2~18

4

16

±6

±0.5

1.6

1.4

2.2

SMA

15

18~40

4

16

±8

±0.4

1.5

1.4

1.6

2.92

16

26.5~40

2

16

±4

±0.3

1.4

1.3

1.3

2.92
