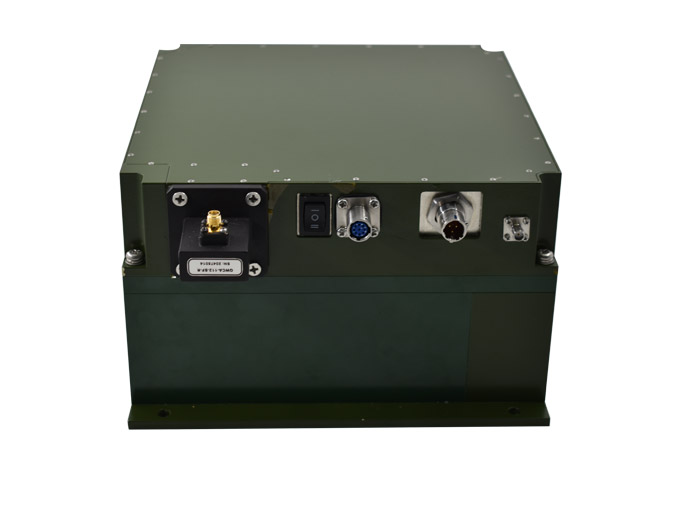

X-band PA Module

Indicator Requirements:

1）Operating Frequency: 7200MHz～7300MHz；

2）Input Power: -10dBm；

3）Rated Output Power: ≥100W(50dBm)；

4）Gain: ≥60dBc；

Inquiry Now

Specification of SLES

1. Indicator Requirements:

1）Operating Frequency: 7200MHz～7300MHz；

2）Input Power: -10dBm；

3）Rated Output Power: ≥100W(50dBm)；

4）Gain: ≥60dBc；

5）Gain Adjustment Range: 30dB, stepping 0.5dB；

6）Gain Flatness: ≤±0.5dB(Random 30MHz)；

7）Input/Output Impedance: 50Ω；

8）Input/Output Standing Wave: ≤1.5；

9）Output Spurious: ≤-65dBc；

10）Three-order Intercept: -30dBc（typical value）(interval: 5 MHz)；

11）AM/PM Conversion Coefficient: ≤3.5°/dB；

12）Input Interface: Coaxial SMA-50K；

13）Output Interface: Waveguide port BJ84(FBP84)；

14）Power Supply: Main supply 220V；

15）Equipment Monitoring Capability: Equipment monitoring, parameter query&setting, and startup&shutdown could be done through Ethernet.

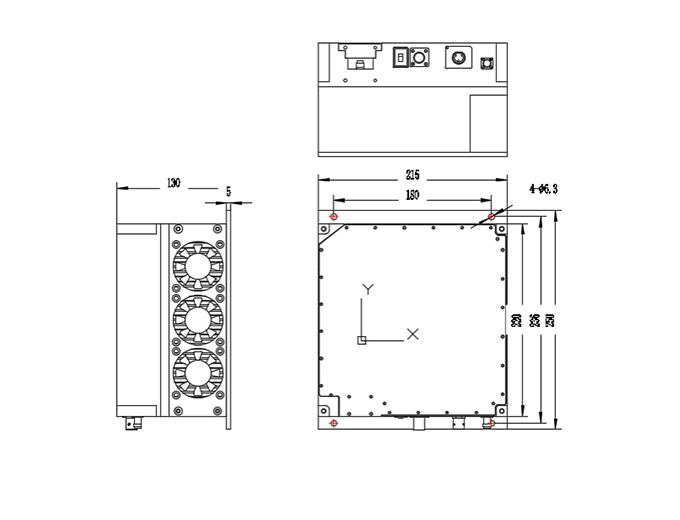

2. Overall Dimensions
